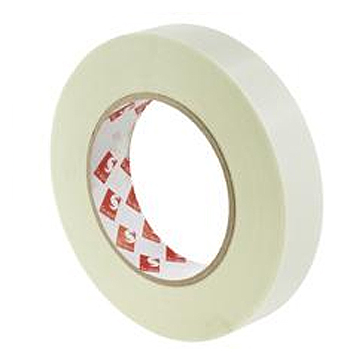

Glass Cloth Adhesive Tape - 0.18mm
Product Reference: 1502F
Scapa 1502F is a glass cloth tape coated with a cross-linked acrylic adhesive with 0.18 mm total thickness and recommended for coil winding protection and insulation and fixing wires prior impregnation (155°C thermal class F).
Colors: White
Adhesive: Cross linked acrylic
Liner: None
Carrier: Glass Cloth
Thickness: 0.18 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Fixing and reinforcing coils lead anchor and output wires.
- Insulation of primary coils and connections.
- Insulation between layers and phases.
- Securing, splicing cables and wires harnesses.
- Outer protective insulating wraps for bobbins, coils, dry transformers, etc.
Product Benefits
- The glass cloth backing provides very good conformability and excellent impregnation.
- Regular finishing onto high diameter copper wires.
- High mechanical strength.
- Cross-linked acrylic adhesive system, which provides an optimum resistance to solvents and varnishes in dry applications.
- Easy printable carrier which allows your brand and the component technical features marking and identification.
- Previous UL 510 approval – Guide OANZ 2: File E 103655. Not reconducted.
- Service temperature: 155°C continuous – Thermal Class F.
MARKETS INCLUDING:
Automotive
Specialty Applications
