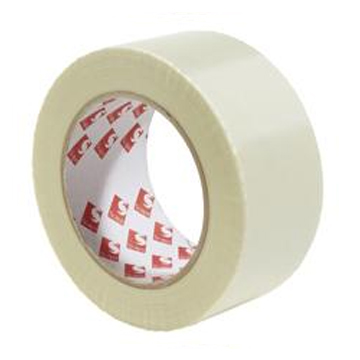

High Temperature Glass Cloth Adhesive Tape
Product Reference: 1504H
Scapa 1504H is a glass cloth tape coated with a thermosetting silicone adhesive with 0.17 mm total thickness and recommended for coil winding protection and insulation and fixing wires prior impregnation (180°C thermal class H).
Colors: White
Adhesive: Silicone
Liner: None
Carrier: Glass Cloth
Thickness: 0.17 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Fixing and reinforcing coils and output wires,
- Fixing and securing wires onto carcass prior to impregnation.
- Fixing, reinforcing and securing high temperature non-adhesive insulating materials.
- Insulating switches, inductors, connections, class H dry-type transformers leads.
- Protective mask of PCB for wave soldering.
- Securing, splicing cables and wires harnesses.
Product Benefits
- The glass cloth backing provides very good conformability and excellent impregnation.
- Regular finishing onto high diameter copper wires.
- High mechanical strength.
- Thermosetting silicone adhesive system, which provides an optimum resistance to solvents and varnishes when fully cured in dry applications.
- Excellent temperature resistance higher than with Scapa 1502F.
- Easy printable carrier which allows your brand and the component technical features marking and identification.
- UL 510 approval – Guide OANZ 2: File E 103655.
- Flame retardant according to UL 510.
- Service temperature: 180°C continuous – Thermal Class H.
