High Temperature Blue Polyester Silicone Masking Tape
Product Reference: 1601

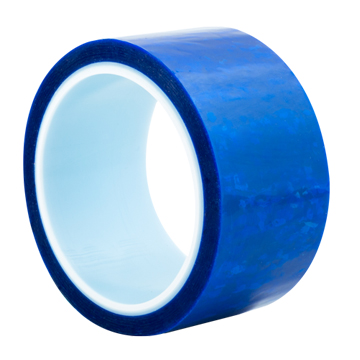

Scapa 1601 is a 23µm clear polyester film, single coated with a translucent blue silicone pressure sensitive adhesive system, 68µm total thickness. Recommended for a variety of masking and splicing applications.
Colors: Blue
Adhesive: Silicone
Liner: None
Carrier: Polyethylene Film
Thickness: 0.068 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Masking contacts during PCB manufacturing.
- High temperature masking during curing cycles.
- Masking during chemical etching.
- Splicing of various types of substrates, particularly siliconised surfaces like silicone release papers.
- End roll tabbing.
Product Benefits
- Resistant to components used in varnish dipping, epoxy resin coatings and adhesives.
- Withstands long periods of heat up to 130°C.
- Resists baking temperatures up to 180°C for 20 min.
- Blue colour enables easy splice identification.
MARKETS INCLUDING:
Specialty Applications
