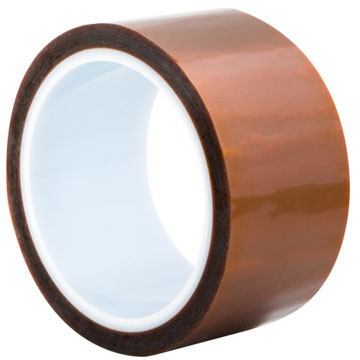

Kapton® Polyimide Silicone Adhesive Tape
Product Reference: 1801
Scapa 1801 is a 25µm Kapton® polyimide film single coated with a cured silicone adhesive system, 60µm total thickness. Recommended for a variety of high temperature protection and insulation applications (180°C thermal class H).
Colors: Amber
Adhesive: Silicone
Liner: None
Carrier: Polyimide
Thickness: 0.06 mm
Availability: Asia/EU/NA – Currently available in all regions, subject to supply considerations.
Applications
- High-temperature masking.
- Bundling and fixing components (thermo switches) exposed to high temperatures.
- For electrical insulation of coils, transformers, wires and cables for class H (180°C) applications.
- For all applications with die cut items please ask for our 1801 Version with interleave packaging.
Product Benefits
- Good resistance to most alcohols, esters, ketones and oils.
- Removes cleanly and in one piece after being exposed to high temperatures.
- High strength backing provides superior puncture, tear and abrasion resistance.
- Resistant to chemical attack
- Excellent thin electrical insulation.
- UL 510 approval – Guide OANZ 2: File E103655.
- Flame retardant.
- Service temperature: 180°C continuous – Thermal Class H.
- Can be used short term up to temperatures of 400°C.
- Resists baking temperatures up to 260°C for 20 min.
