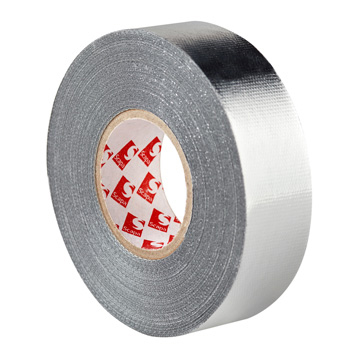

High Temperature Glass Cloth Aluminium
Product Reference: 250
Scapa 250 is a high performance heat reflective aluminium backed glass cloth, single coated with a high temperature pressure sensitive silicone adhesive.
Scapa 250 is available in silver.
Colors: Silver
Adhesive: Silicone
Liner: None
Carrier: Aluminium Foil
Thickness: 0.2 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Wrapping of automotive electrical wiring harnesses.
- Used as heat shield to protect against heat radiation.
- Hand application.
- Product designed for applications which require a high heat reflective performance*.
Product Benefits
- Very good temperature resistance.
- SAE J2302 Thermal Effectiveness at 550°C is 107°C (other testing results available on request).
- High tensile strength.
- Halogen-free.
- Lead-free.
- Conforms to European Directives 2000/53/EC for End of Vehicle Life (ELV) recycling (does not contain heavy metals) and 2002/95/EC (RoHS).
- Excellent chemical compatibility with most materials used in components for wiring.
