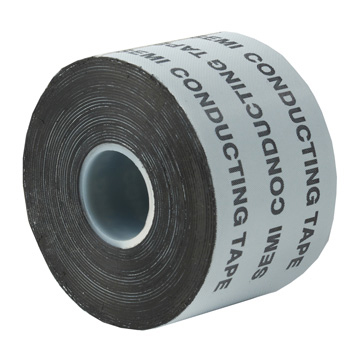

Premium Semi-Conducting EPR Self-Amalgamating Tape - 0.75mm
Product Reference: 2525
Scapa 2525 is a semi-conducting, self-amalgamating EPR (Ethylene Propylene Rubber) tape. Its color is black. The product and interleave are printed with the cautionary words semi-conducting to distinguish the product from insulating tapes.
Colors: Black
Adhesive: None
Liner: Printed Smooth Interleave
Carrier: EPR Rubber
Thickness: 0.75 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- For ensuring the continuity of conductor and core screens at cable joints in a variety of polymeric and elastomeric insulated cables.
- For jointing power cables up to 69kV.
- For stress cone construction, where it provides the conducting layer.
- For smoothing electrical stresses on irregular shaped lugs and connectors.
- For smoothing electrical stresses in joints and terminations using premoulded components.
- For smoothing electrical stresses on overhead power lines, reducing discharges and consequent interference to local radio and telephone communications.
Product Benefits
- Excellent physical and electrical properties with a high degree of stability.
- Void-free, homogeneous wrapping without the application of heat or pressure.
- Excellent resistance to water and ozone.
- UV resistant.
- The tape has been formulated to minimise corrosion potential.
- The product is approved to EDF HN 26-S-04.
- Meets specification UTE C 33-011.
- Service temperature: –40°C to +100°C, Overload temperature 120°C.
- Supplied in an easy to handle and apply tape form. The product is interleaved with a disposable printed plastic liner.
