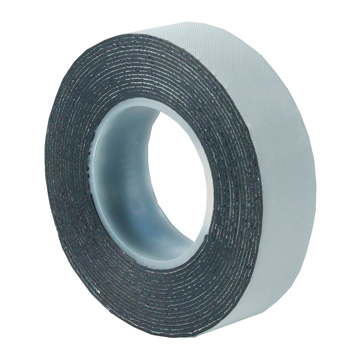

High Permittivity Stress Control Tape - 1.0mm
Product Reference: 2527
Scapa 2527 is a high permittivity, stress control elastomeric tape. Its colour is grey. The product is printed with the words Caution High K
Colors: Grey
Adhesive: None
Liner: PVC Interleave Embossed
Carrier: Rubber Blend
Thickness: 1 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- For electrical stress control in all forms of joints and terminations for medium voltage polymeric cables.
Product Benefits
- Supplied in an easy to handle and apply tape form. The product is interleaved with a disposable plastic liner.
- Service temperature: –40 to +100°C, Overload temperature 120°C.
- The same size coil of tape can be used in joints and terminations over a range of cable sizes and types.
- The joint or termination can be made rapidly by using a tape rather than a stress cone construction to control electrical stress.
- Particularly beneficial in jointing newly designed medium voltage cables that have reduced insulation thickness.
- Allows more compact joints and terminations.
- Can flow in minutes into cracks formed during cable preparation.
- High permittivity characteristics of the provide effective stress control in all types of joints and terminations for medium voltage polymeric cables.
- The tape amalgamates rapidly when applied under tension to provide a void-free homogeneous wrapping, without the need for external heat or pressure.
- Exceptionally well balanced electrical and mechanical properties, which show a high degree of stability under conditions of use.
