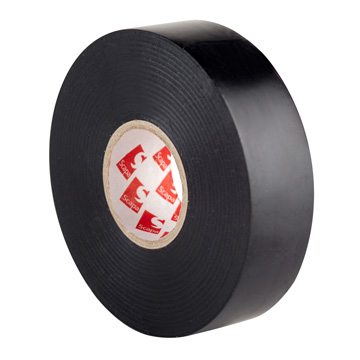

PVC Premium Electrical Adhesive Tape - 0.18mm
Product Reference: 2705
Scapa 2705 is a 0.18mm premium quality, professional grade, electrical self-extinguishing soft PVC tape which uses an aggressive pressure sensitive rubber-based adhesive system. It has been designed for use where a recognised specification or international standard is a must and where environmental safety is a concern.
Colors: Black, White, Red, Blue, Grey
Adhesive: Rubber Resin
Liner: None
Carrier: Soft PVC
Thickness: 0.18 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Primary electrical insulation
- Harnessing
- Protection for low and medium voltage cables splices
- Typically engineered for the professional requirements of telecom and electricity boards
- Automotive electrical wire harness wrapping
Product Benefits
- Excellent resistance to abrasion, corrosion and moisture
- High dielectric strength and mechanical protection
- Excellent conformability
- Suitable for indoor and outdoor applications
- Tape can be applied at low temperature (till -10°C)
- Provides higher voltage break-down and mechanical protection than Scapa 6022.
- Conforms to the European Directive 2011/65/EC (RoHS 2) and Commission Delegated Directive (EU) 2015/863 (RoHS 3)
- Complies to REACH
- Index temperature 0°C to 90°C according to IMQ and VDE Approval Certificates
- IMQ and VDE Approval Certificates according to IEC 60454-3-1
- Operating temperature resistance between –40°C to +105°C on harness according to Automotive OEMs’ specifications
MARKETS INCLUDING:
Automotive
Building and Construction
