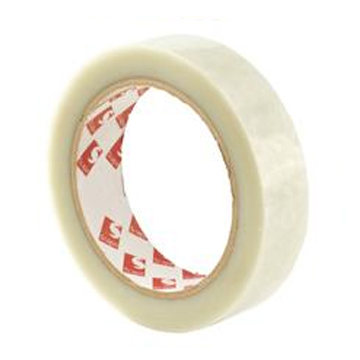

Transparent Polyester Acrylic Adhesive Tape
Product Reference: 8705B
Scapa 8705B is a polyester film coated with a fully cured acrylic adhesive system, with 0.05 mm total thickness and recommended for a variety of coil winding, protection and insulation applications (130°C thermal class B).
Colors: Transparent
Adhesive: Acrylic
Liner: None
Carrier: Polyester
Thickness: 0.05 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Fixing and securing non-adhesive insulating materials between layers.
- Fixing output wires, copper sheets or wire harnesses.
- Layer and phases insulation.
- Outer protective insulating wraps for bobbins, transformers, etc.
- Soldering protection and varied insulation uses for motors.
- Features identification (Printable).
Product Benefits
- 23 micron polyester film backing for improved moisture resistance, weight and space savings.
- Outstanding dielectric strength.
- Acrylic adhesive system specially designed for its resistance to solvents, freon and transformer oils.
- Service temperature: 130°C continuous – Thermal Class B.
- Good peel strength to paints and varnishes (accordingly to EN ISO 2409:2013)
