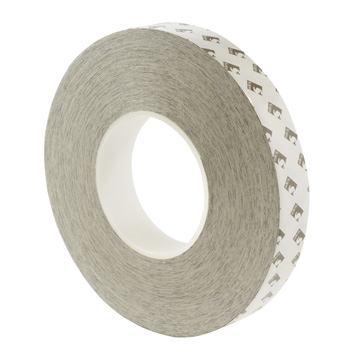

Thermal Conductive Acrylic Foam Film Tape (AFFT) - white, 0.25mm thick
Product Reference: AS72525
Scapa AS72525 is an acrylic foam film tape (AFFT), double side coated with thermal conductive acrylic adhesive containing heat conductive particles, on a Polyester (PET) carrier. The product is presented with a release liner on one side. The product is available in white colour and is 0.25mm thick.
Colors: White
Adhesive: Acrylic thermal conductive
Liner: Scapa branded paper (PR)
Carrier: Polyester Film
Thickness: 0.25 mm
Availability: Asia/EU/NA
Currently available in all regions, subject to supply considerations.
Applications
- Mounting LED arrays on metal profiles (for example LED TV).
- Bonding components generating heat to a heat sink.
Product Benefits
- Service temperature: -30°C to +100°C (continuous), and -30°C to +150°C peak (duration of 1 hour).
- The product is V-2 rated to UL®94 for flame Retardancy. Plastics component QMFZ2.E254672. The File number is E254672
- Pressure sensitive acrylic adhesive with thermal conductive particles.
- Very good at multiple substrates (Plastics and others materials).
- Halogen-free tape.
- Complies with Directives 2000/53/EC (ELV) and 2002/95/EC (RoHS) restricting the use of heavy metals for products in the automotive and electronics markets.
